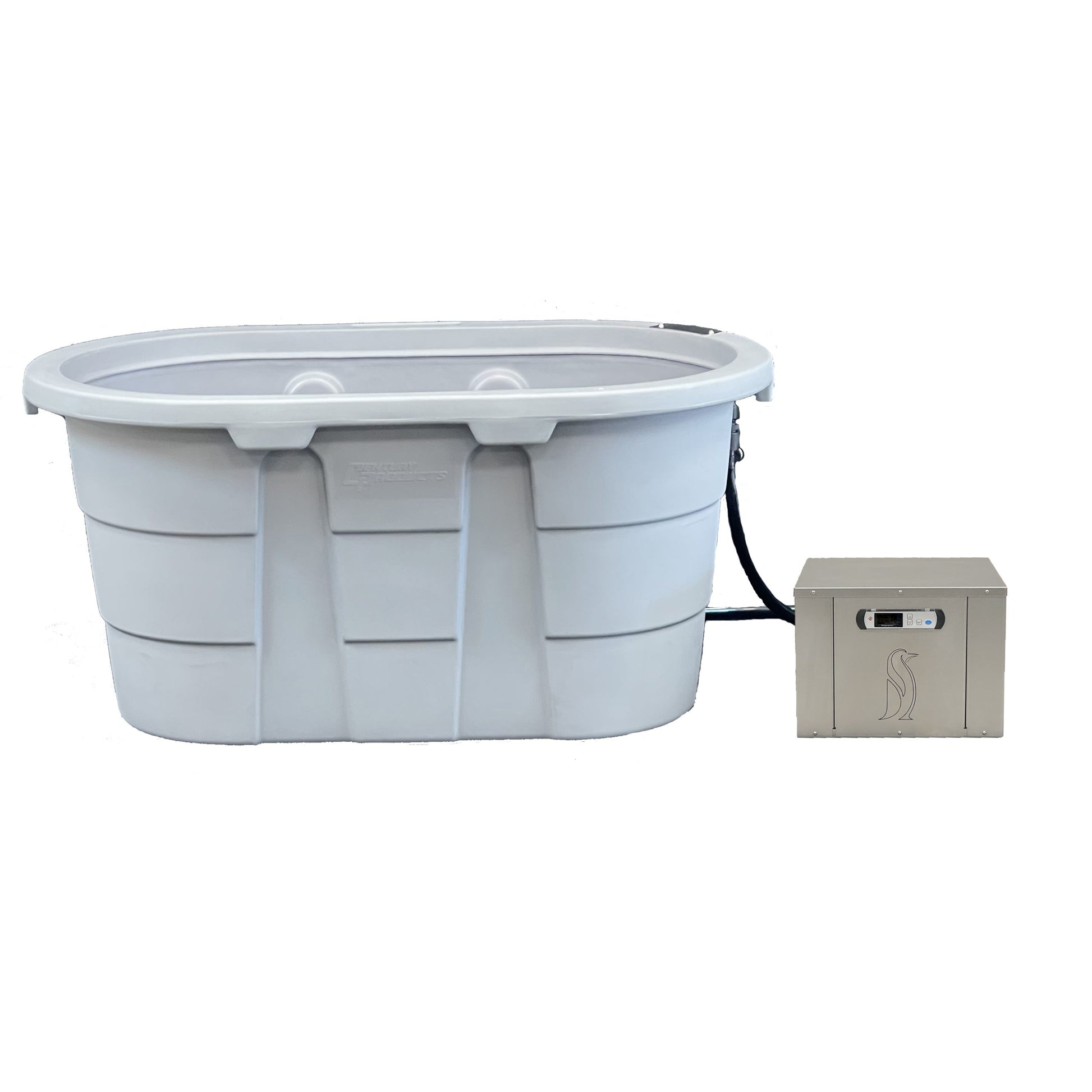

Cold Therapy Chiller & Uninsulated Tub Package: Plug & Play – No Tools Needed
Package Includes:
- 100-gallon tub (53″ x 31″ x 26″ external / 47″ x 25″ x 26″ internal)

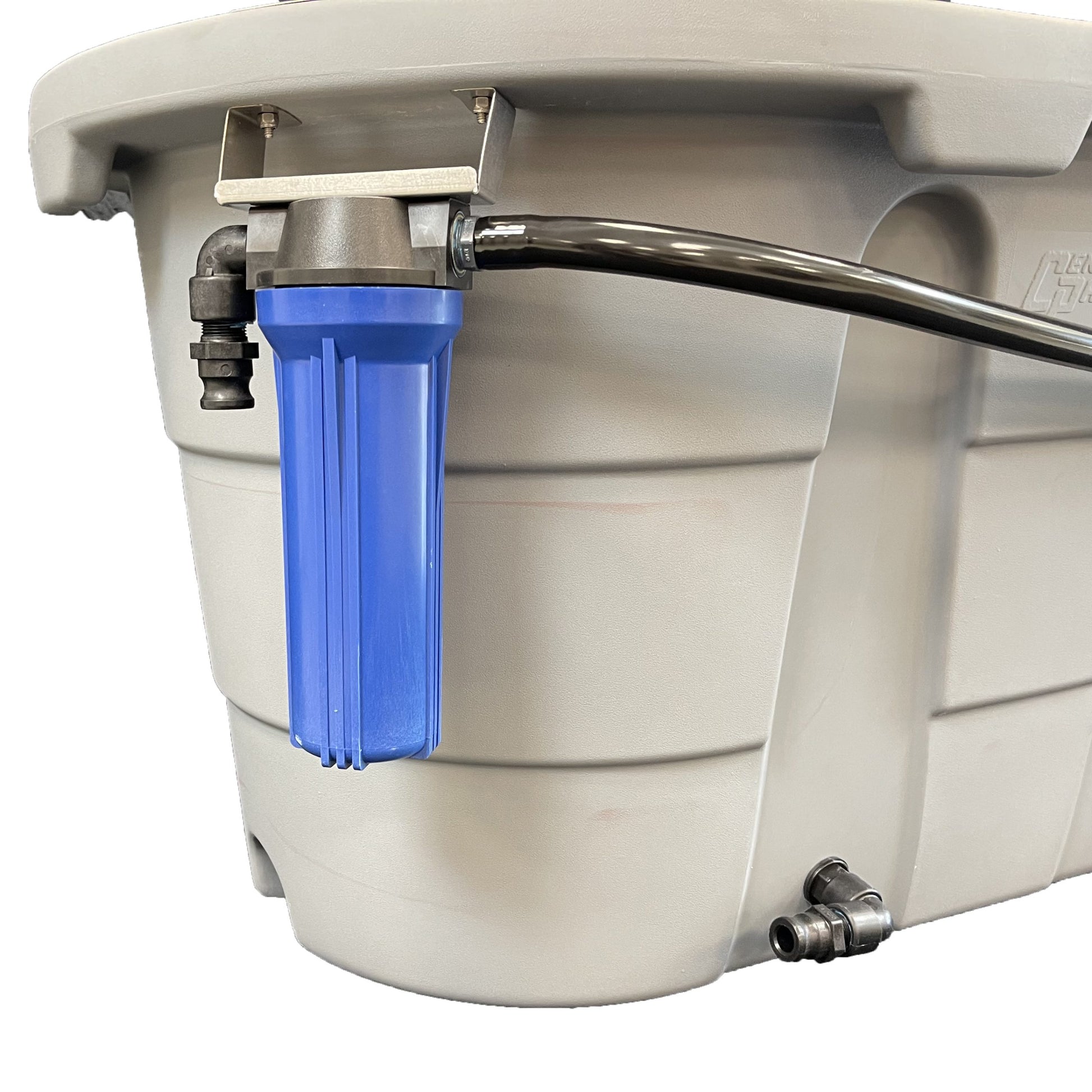

- Attached filter canister with 150-micron washable/reusable filter
- Inline screen – coarse filter to catch hair and large debris before the chiller
- 3/4HP Cold Therapy Chiller with a built-in pump
- Quick connect hoses
Effortless Cold Therapy for Maximum Benefits
Whether you are new to cold therapy or a seasoned pro, you probably love the benefits of cold therapy, but not the hassle of managing ice. Keeping an ice bath cold with ice alone can be a burden. Our Cold Therapy Chiller & Tub package eliminates this issue by maintaining the cold temperature effortlessly thus allowing for more consistent and frequent usage, maximizing the benefits of your cold therapy routine.
Efficient Cooling Performance
Our chiller can reach temperatures in the low 40°F range and even down into the high 30°F under optimal conditions, though reducing external heat sources will improve the chiller’s performance. Ambient temperatures and sun exposure significantly affect the heat load on a cold therapy tub. Even in full sun or less-than-ideal conditions, maintaining a low to mid-40°F temperature is achievable with this setup.
Outdoor Use
The Cold Therapy Chiller can be used outdoors in all weather conditions, except freezing temperatures. So, to keep your unit functioning properly, be sure to disconnect and drain the chiller completely if the ambient temperatures drop to freezing or below to prevent damage.
Installation and Maintenance Tips
For best results, do not place the chiller in an area that cannot get wet, as both the chiller and tubing will produce condensation. Additionally, if you ever notice your system lacks flow or if you are unsure about the flow rate, immediately unplug the chiller and contact support at support@penguinchillers.com.
Strong water flow is crucial for any application requiring a water chiller because insufficient flow can cause water to freeze inside the chiller, leading to potential damage. Damage caused by improper setup or maintenance is not covered under the manufacturer’s warranty.
Cost-Effective Operation
Operating the Cold Therapy Chiller & Tub is more affordable than most expect. At $0.12/KWh, the monthly cost of operation is around $18-$28. The compressor and fan only activate when cooling is needed, and once the water reaches the set point, they turn off, leaving only the low-wattage pump running.
Setting Up Your Chiller
Ideally, keep the water cold at all times so to control bacteria, reduce maintenance, and keep it clean longer. Power savings from using a timer are minimal ($3-$5/month) compared to continuous operation costs ($18-$28/month). Using a timer requires more frequent water and filter changes, negating any savings, additionally, frequent power cycling adds wear and tear to the pump, increasing the risk of failure.

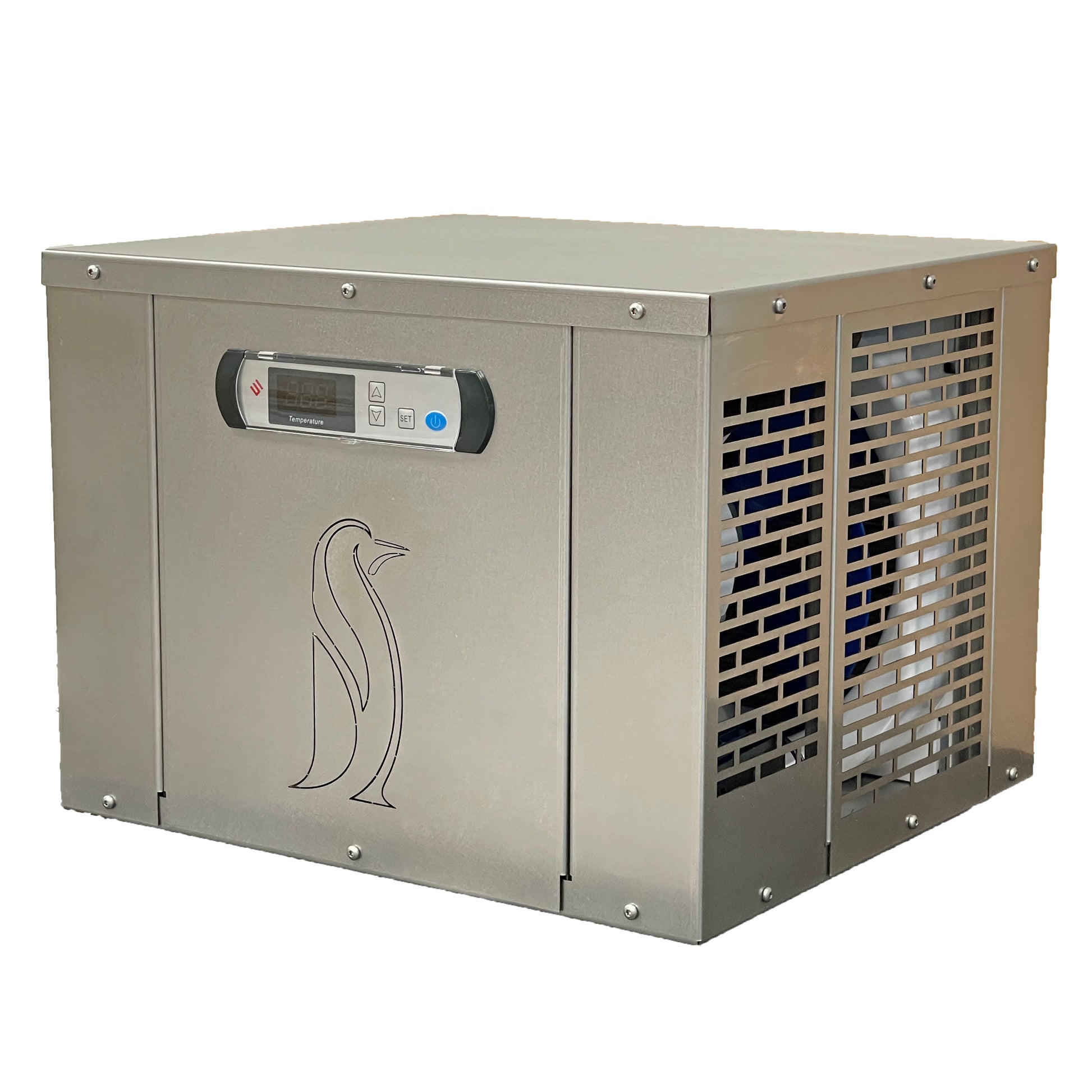

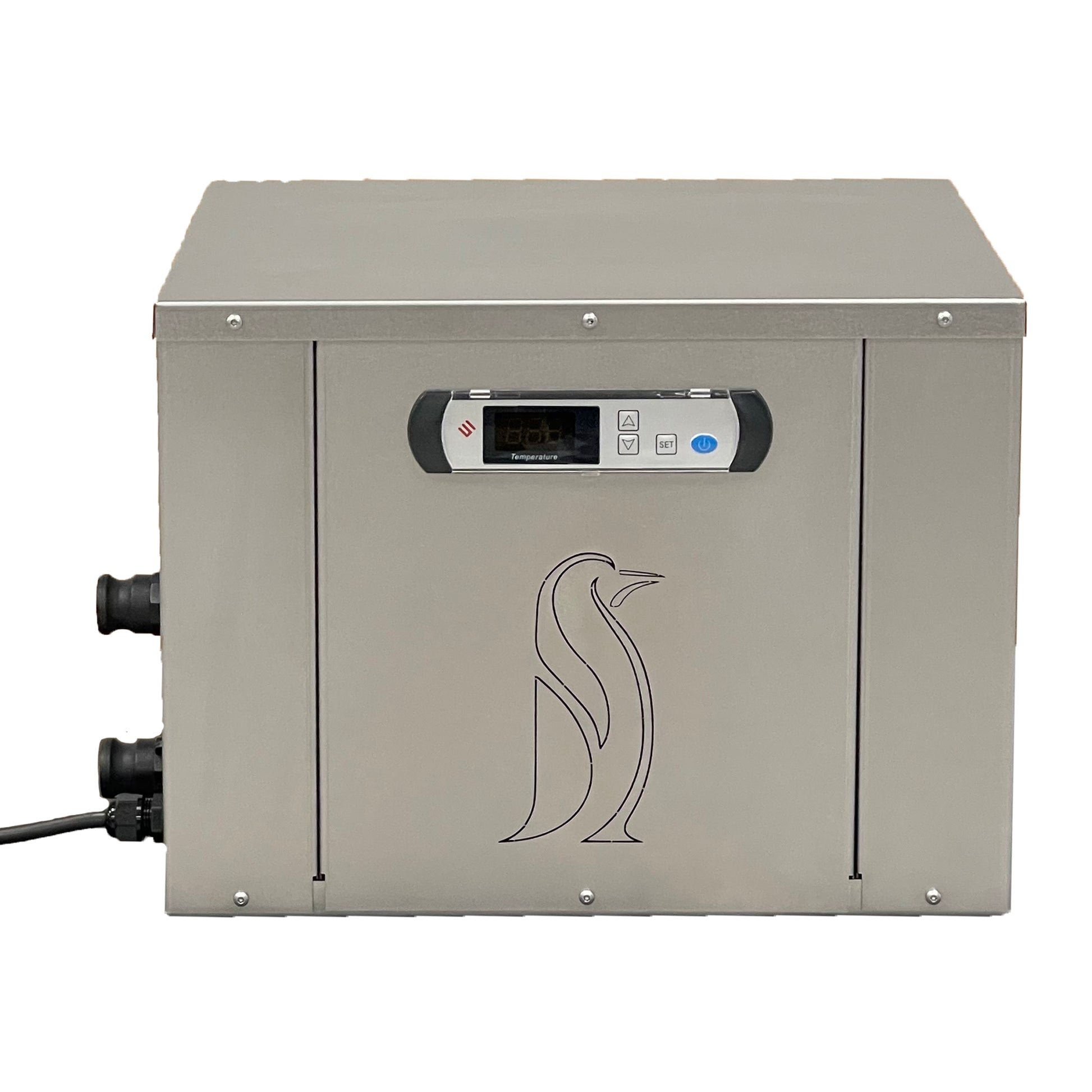

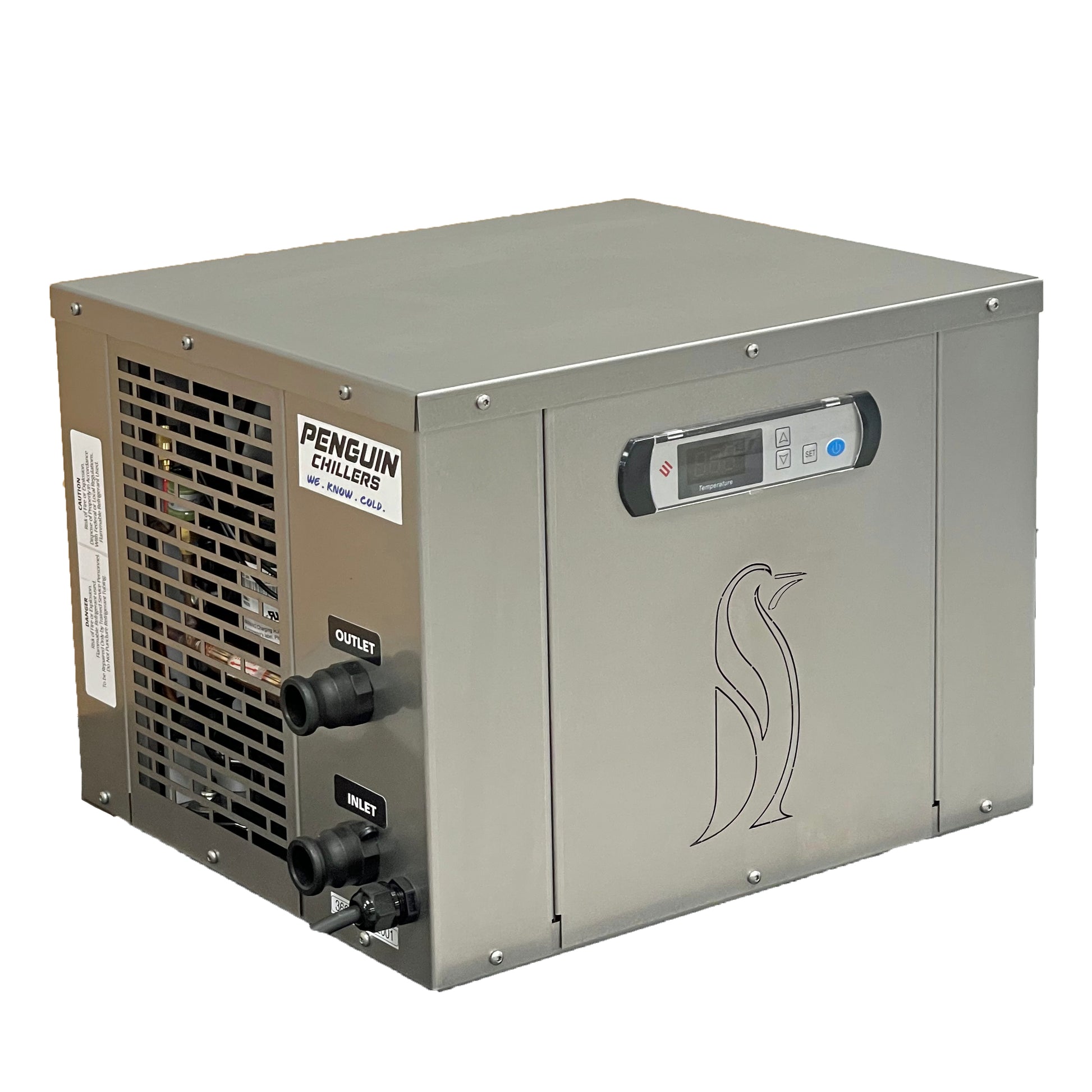

Chiller Specifications:
- 3/4HP High Efficiency Chiller
- 7,500 BTU/hr
- 65 dBA
- 110 – 120 Volts / 450 Watts / 3.9 Amps
- Dimensions: 14”W x 20”D x 12”H
- Weight: 49 lbs
- Built-in Pump

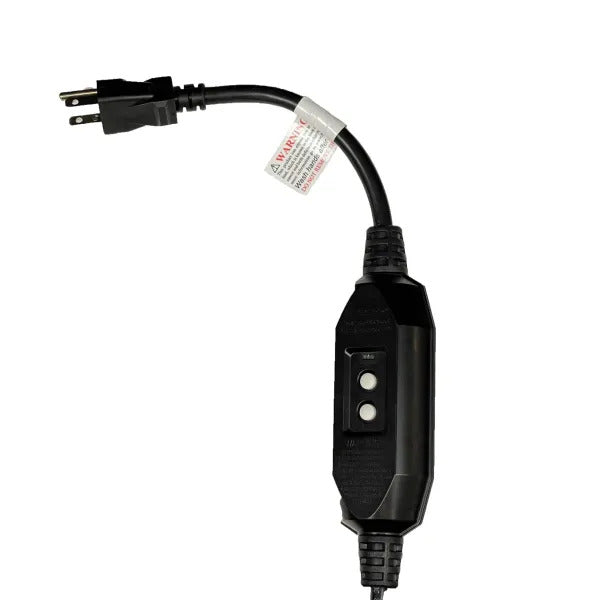

- 10′ power cord with GFCI protection
- Rain Proof* (*Disconnect chiller and drain completely when ambient temperatures are at or below freezing to prevent damage)
- 1-Year Product Warranty
- Proudly made in the USA
